E9 Accu Bend Channel Letter Machine Tools Stainless And Aluminum Folding Machine

Name: E9 Accu Bend Channel Letter Machine Tools Stainless And Aluminum Folding Machine
Brand: EJON
Price: 5 USD

China E9 Accu Bend Channel Letter Machine Tools Stainless And Aluminum Folding Machine wholesale

Place of Origin : Tianjin, China

Brand Name : EJON

Certification : CE

Packaging Details : export wooden case

Supply Ability : 5000 Set/Sets per Year

Price : $5,500.00/sets 1-2 sets

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2021

Warranty of core components : 1 Year

Core Components : Motor

Material / Metal Processed : Aluminum, Aluminum profile,aluminum plate,aluminum sheet

Automation : Automatic

Year : 2021

Warranty : 1 Year

Weight (KG) : 200

Key Selling Points : High-accuracy

Applicable Industries : Machinery Repair Shops, Advertising Company, Building Material Shops

Showroom Location : Egypt, Viet Nam, Russia, Spain, Thailand, South Korea

Machine Type : Roller-Bending Machine

Extra Services : Slotting & Notching

Weight : 200KG

Thickness : 0.4-1.2mm

height : 20-130mm

Min.Bending Angle : R6

Suitable material : Aluminum plate and profile

Control system : 4 Axis Control System

Slotting method : Milling wheel cutter

Feeding method : Rolling Continuous feeding

After-sales Service Provided : Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Egypt, Turkey, Viet Nam, Russia, Spain, Thailand, South Korea

Port : Tianjin

Contact Now

Product Description

Ejon E9 accu bend channel letter machine tools channel letter bender for sale stainless and aluminum folding machine

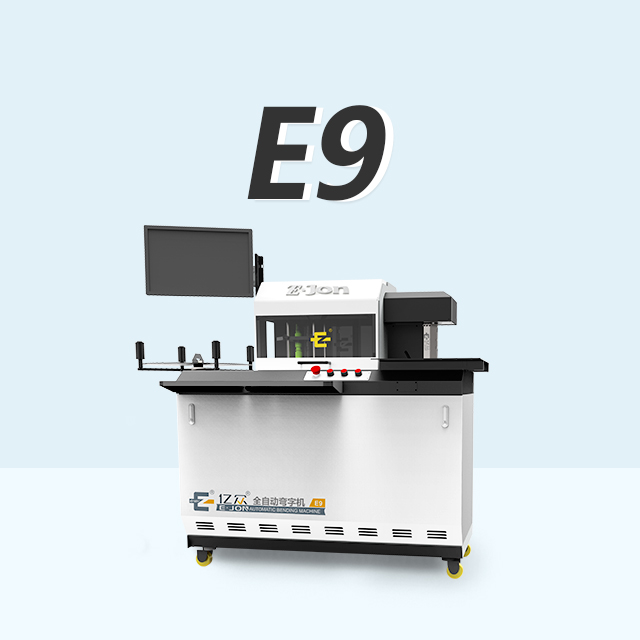

E9 Accu Bend Channel Letter Machine Tools Stainless And Aluminum Folding Machine

SPECIFICATIONS
Feeding System	Roller circulation feeding system
Slotting System	Alloy milling cutter slotting system
Bending System	Double bends bending system
Suitable Material	Flat Aluminum , Aluminium profile,Trim cap aluminum, Customized for different Materials
Material Height	20~130mm
Material Thickness	0.4~1.2mm
Control System	4 axis control system
Min. Bending Angle	R6
File Format	Dxf.Plt.
Power	AC220V,50Hz,2.0Kw
Total Weight	200KG

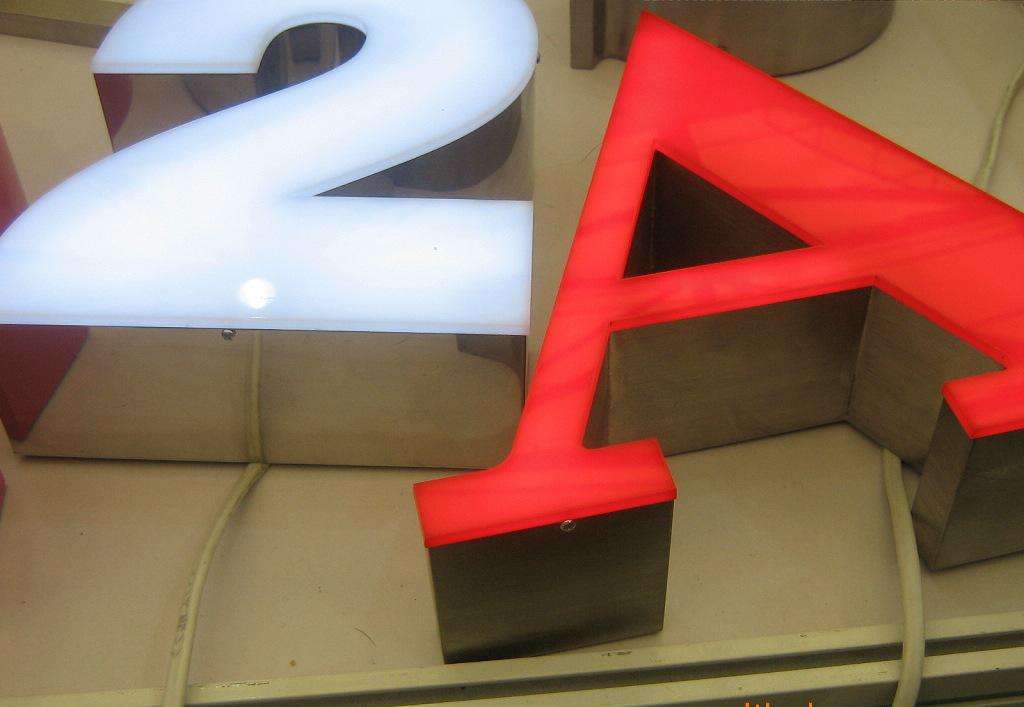

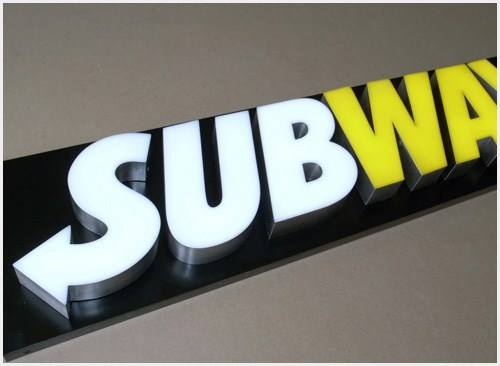

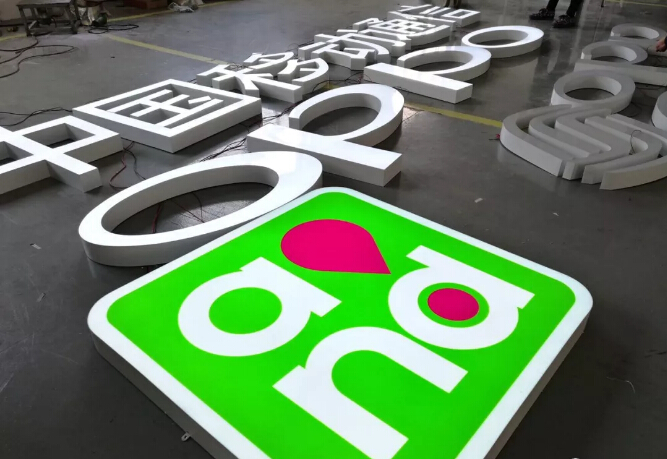

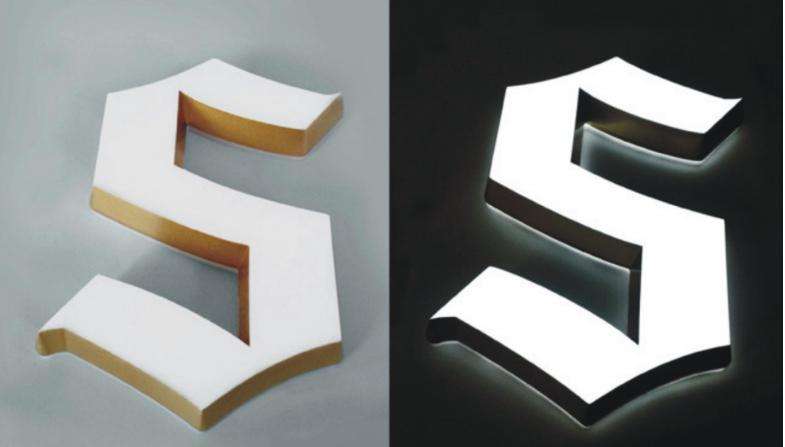

Sample Display

Detailed Images

Feeding system

Alloy milling cutter slotting system for Aluminum plate and Aluminum profiles.

The feeding support adopts an integral casting structure,which effectively avoids the deformation generated during the feeding and ensures the stability of feeding.

Slotting sysytem

The motors ensure fast and accurate processing.

The slotting system can realize the from and back double sides slotting

Bending system

The bending system adopts structural casting and is intergrally cast to ensure the stability of high-speed bending.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

Title goes here.

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

* Size : 1220*660*1290mm

* Weight : 250KG

* Packaging details : The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
