Boost Your Sign Making Efficiency with EJON T20 Automatic Letter Bending Machine

Name: Boost Your Sign Making Efficiency with EJON T20 Automatic Letter Bending Machine
Brand: EJON
Price: 12 USD

China Boost Your Sign Making Efficiency with EJON T20 Automatic Letter Bending Machine wholesale

Place of Origin : Tianjin, China

Brand Name : EJON

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 Year

Core Components : Motor

Material / Metal Processed : Aluminium alloy, Aluminum, ALLOY, Stainless steel, Carbon steel

Automation : Automatic

Warranty : 1 Year

Weight (KG) : 500

Key Selling Points : Automatic

Applicable Industries : Manufacturing Plant, Advertising Company

Showroom Location : Egypt, Turkey, Viet Nam, Saudi Arabia, Thailand, Morocco, Kenya, South Korea, South Africa, Malaysia

Name : Cnc Auto Letter Bending Machine

Voltage : 220V/50-60HZ/1P

Application : Making 3D Sign Channel Letters

Material width : 10-130mm

Bending thickness : SS:0.3-1.2mm

Certification : ce

After-sales Service Provided : Video technical support, Online support

Slotting System : milling cutter/plane cutter slotting

FEEDING SYSTEM : Circulation-typed Clamp Feeding System

Bending system : Double Blade Alternate Bending System

Packaging Details : Wooden box

Port : Tianjin

Supply Ability : 1000 Set/Sets per Year

Price : $12,100.00/sets 1-2 sets

Contact Now

Product Description

It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and

resin words, etc.

Boost Your Sign Making Efficiency with EJON T20 Automatic Letter Bending Machine

SPECIFICATION
Control System	4 axis servo control system
Power	AC 220 V, 50 Hz, 3.0 kW
Air Supply	0.6 m³/min
Material Height	Stainless steel, Galvanized steel, Aluminum plate: 20~130 mm; Aluminum profile: 20~100 mm
Material Thickness	0.4~1.2 mm
Total Weight	500 kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc., which ensure the strong stability.

4) 4 sets of Panasonic servo control system, SMC pneumatic component, chrome-faced, computer and air pump.

Mechanical Hand Feeding Design

The specially designed extra long alternate feeding mechanism with mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and can improve feeding precision.

Double-Cutter Slotting

Adopts double cutter independent slotting structure, easily deal with various materials.

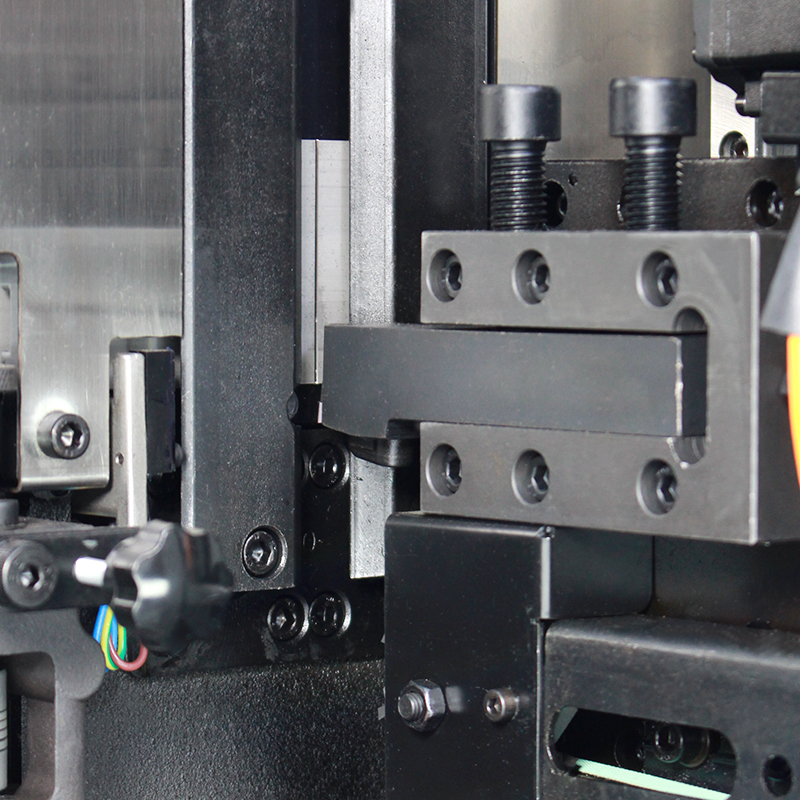

Plane cutter

Plane cutter for Galvanized sheet and Stainless steel

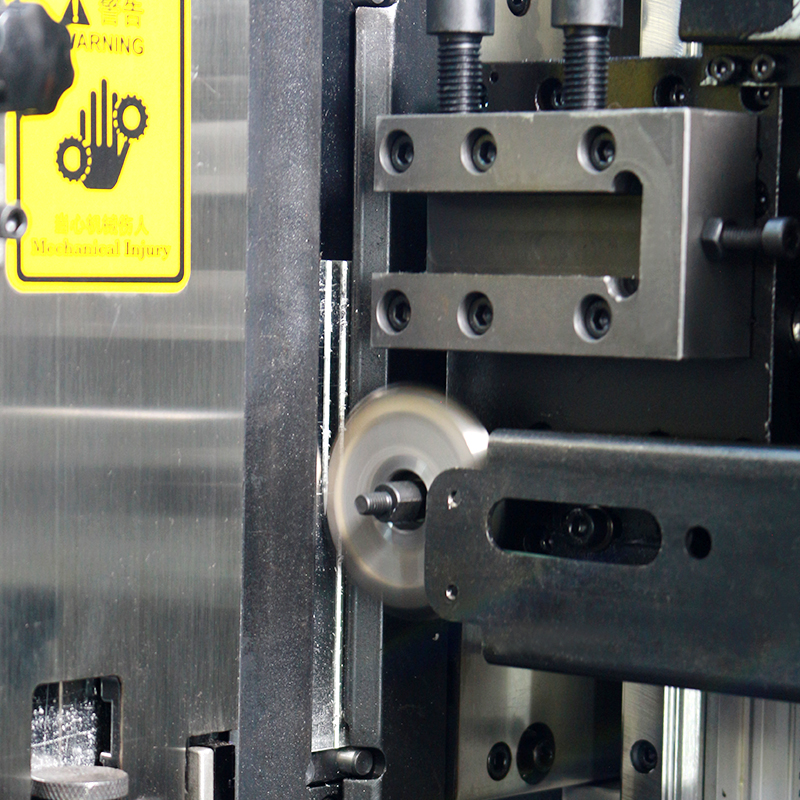

Milling cutter

Milling cutter for Aluminum plate and Aluminum profiles

Double bending tools alternating bending structure

Adopting the bending structure cast by ductile iron, good vibration absorption ,high structural strength, which reduces the number of parts splice. configuration of high-power servo motor, to ensure that high-speed bending work, effectively improve the positioning accuracy and high-speed bending stability.

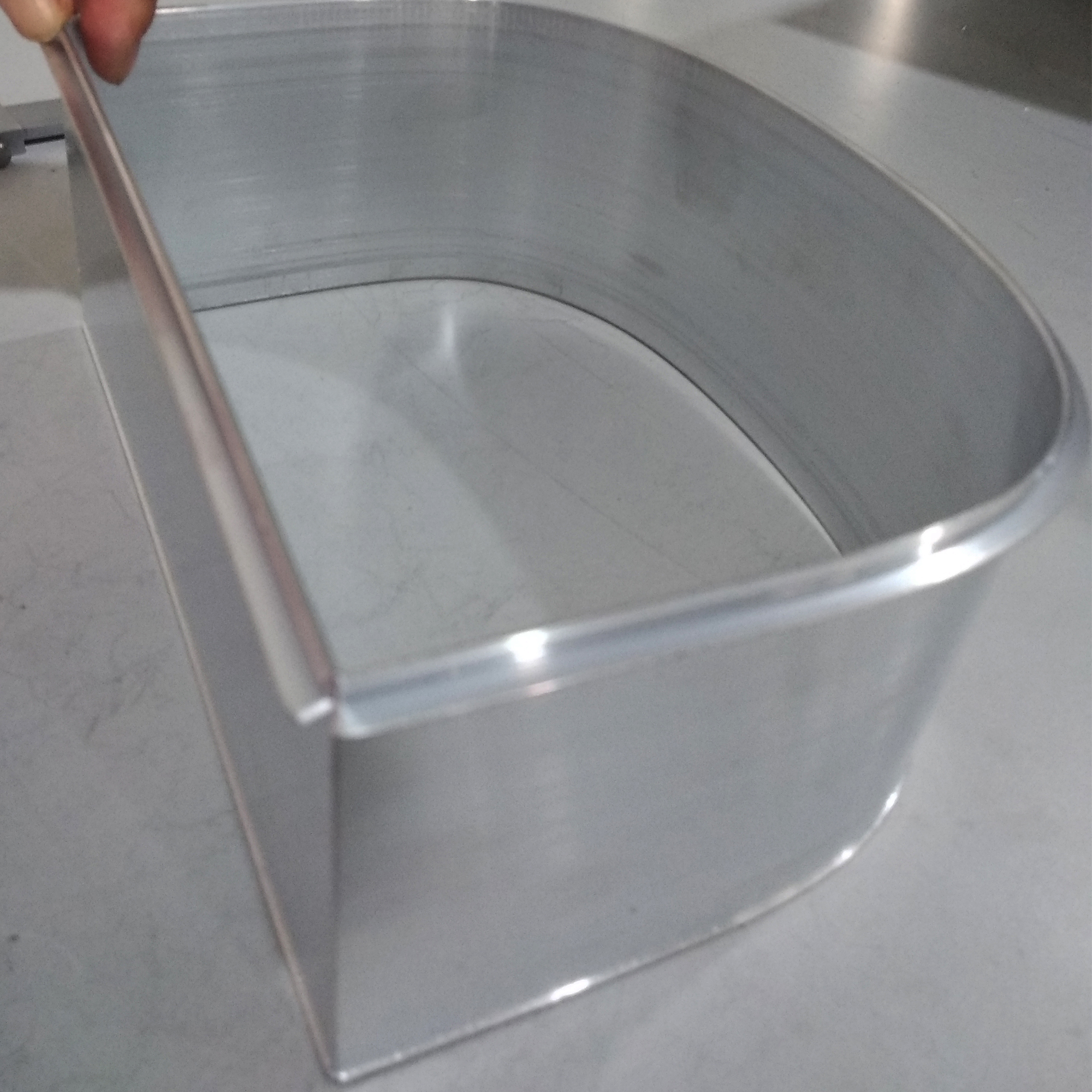

Finished Letters

LED luminous characters

Seiko letter

Resin letters

Rimless letter

Narrow edge letter

Edged aluminum letter

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.

Computer configuration: XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor

Our suggestion:

more than 4 kW;

the gas flow is 0.6 m³/min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI .

We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install and use the machine.

* Engineers available to service machinery overseas.

About us

CLICK HERE TO VISIT OUR STORE!

Our Customers

Spain

Ukraine

USA

Chinese Taiwan

Kenya

India

Packing & Delivery

Packaging
Size	1410(L) * 750 (W) * 1560(D)
Weight	460 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, will use PE film for packing or pack it according to customer's special request.

Packaging
Size	660(L) * 660(W) * 1110 (D)
Weight	45 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, will use PE film for packing or pack it according to customer's special request.
